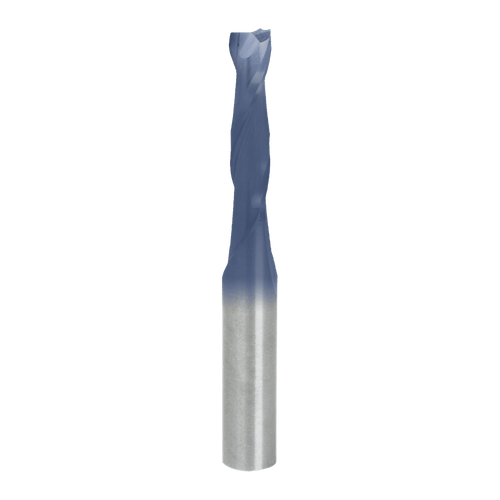

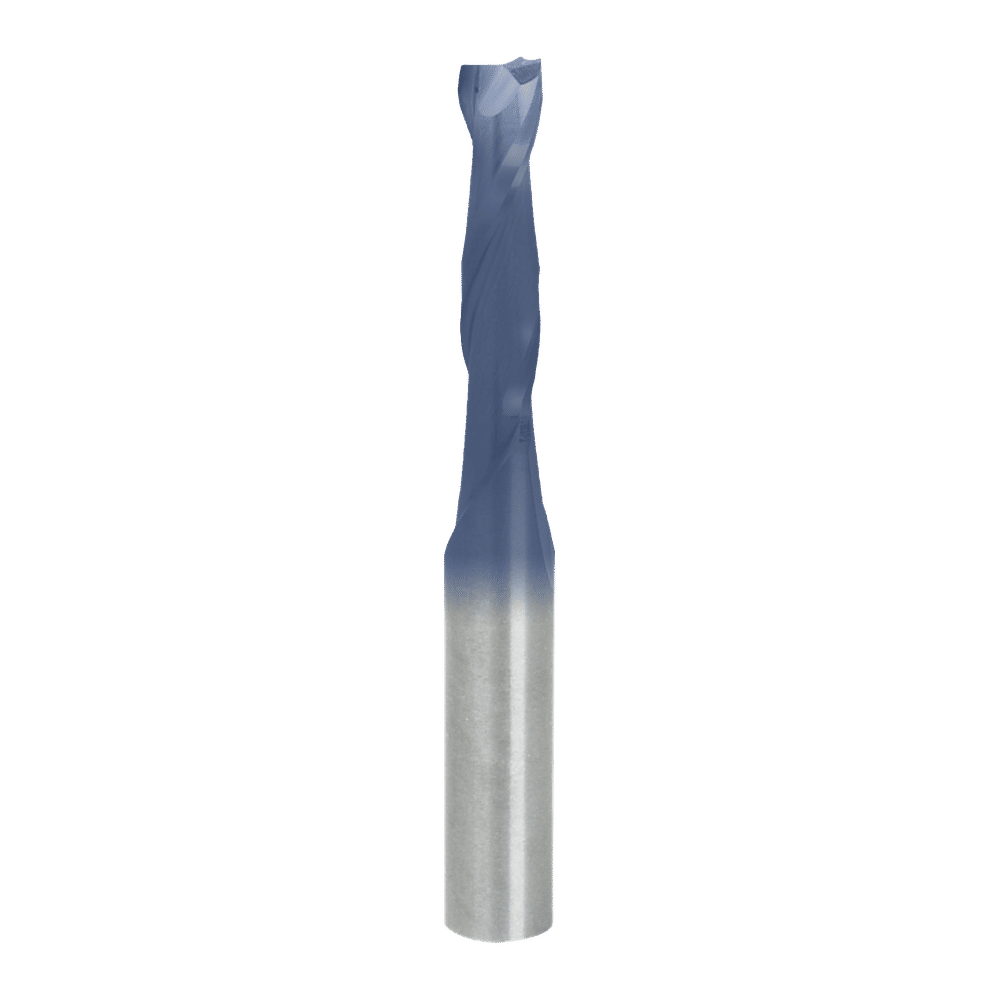

Freud 3/16" Up Spiral Bit

Freud

SKU: 75101

Options

Cutting parts, grooves and deep holes in wood, plywood and composites

Solid carbide up spiral bits combine effective chip removal with a cut quality that can’t be matched by standard straight bits. Ideal for through-cuts, mortises and deep blind holes in production applications. The up spiral design provides the best cut quality on the bottom surface of the material. Use these bits in CNC, hand-held or table-mounted routers.

Fast chip removal with excellent quality and long life
Use in CNC, hand-held and table-mounted routers
Black I.C.E. coating for cool cutting edge and superior chip evacuation
Freud Premier Solid Carbide
Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits

Ideal For: high-volume production settings

TECHNICAL SPECIFICATIONS

Number of Cutters	2
Max RPM	24000

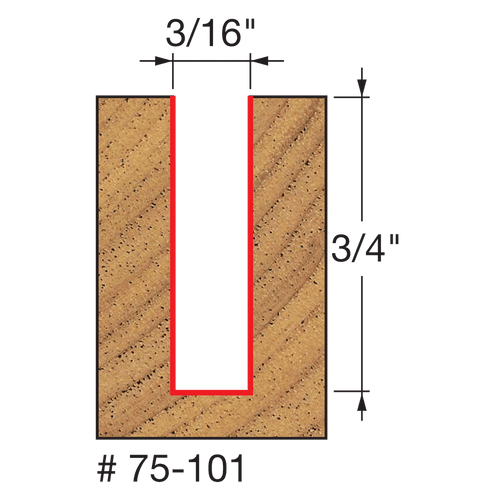

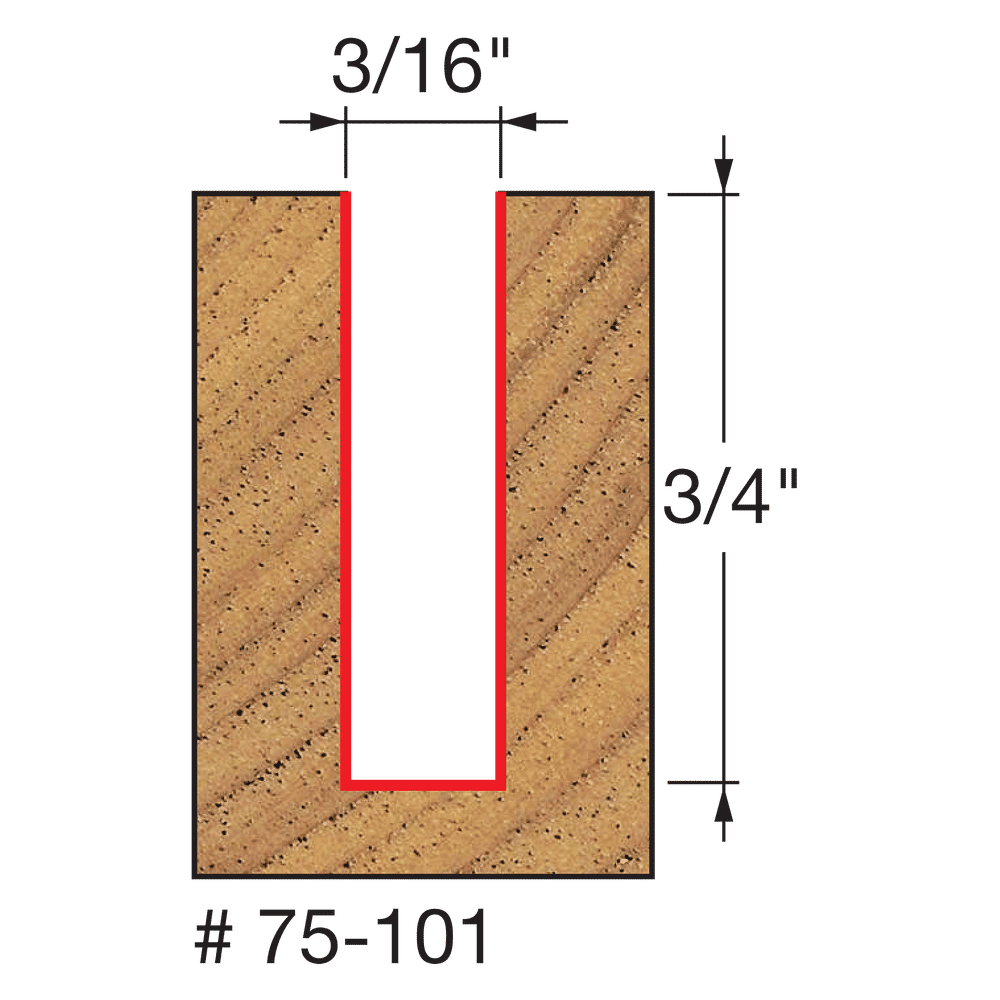

Carbide Height (h)	3/4"
Overall Dia. (D)	3/16"
Overall Length (H)	2"
Shank Dia. (A)	1/4"
