Reese Towpower® Wiring Connector 4-Way Flat Extension Length Wire

Reese Towpower® Wiring Connector 4-Way Flat Extension Length Wire

Reese TowPower

SKU: 4902334

Options

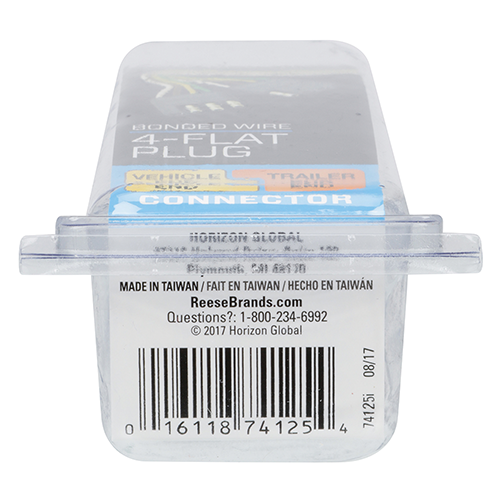

PART NO: 74125

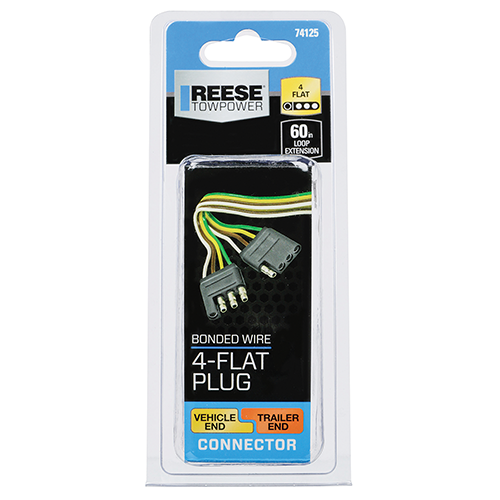

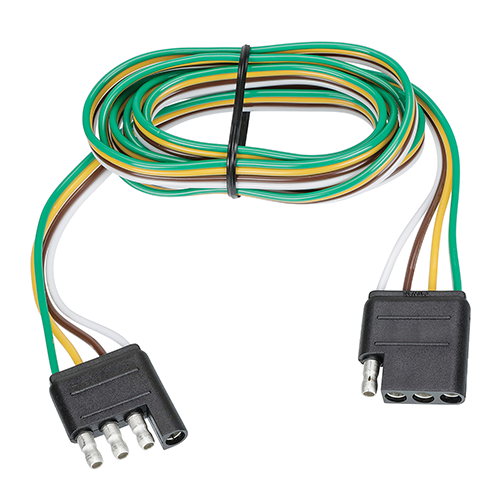

The REESE Towpower 4-way flat complete connector loop is designed to handle basic lighting connections on small trailers. It features 18 gauge bonded wire and conforms to SAE spec J1128 which will allow it to fit most 4-flat connectors on the market. The loop style connector can be used as an extension or cut and spliced to meet your needs when repairing existing connectors on either the vehicle or the trailer.

Comes with both car and trailer connectors
Features 18 gauge bonded wire
Ground wire runs full length of assembly
Tin plated terminals
Bolded wire for a clean neat appearance
Rated for 7.5 amps per circuit
Ground wire runs full length of assembly
Conforms to SAE spec. J1128

SPECIFICATIONS

BRAND:	REESE TOWPOWER
PART NUMBER:	74125
WARRANTY:	LIMITED 1 YEAR WARRANTY
UPC:	016118741254
DIMENSIONS:	1.99" X 2.9" X 6.9" (SHIPPING)
WEIGHT:	0.2 LBS

PART NO: 74123

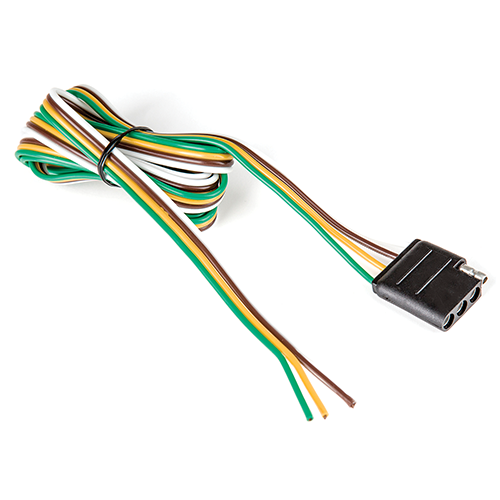

REESE Towpower 4-way flat, vehicle end connector allows for the electrical connection between the towing vehicle and the towed trailer. The simple 4-wire connection activates the trailer's stop, turn and tail-lights.

Compatible with most commonly used trailer plugs
60 In. vehicle connector
Used when towing light duty trailers with basic wiring
Tin plated terminals
Bolded wire for a clean neat appearance.
Rated for 7.5 amps per circuit
Ground wire runs full length of assembly
Conforms to SAE spec. J1128

SPECIFICATIONS

BRAND:	REESE TOWPOWER
PART NUMBER:	74123
WARRANTY:	LIMITED 1 YEAR WARRANTY
UPC:	016118741230
DIMENSIONS:	2" X 2.9" X 7" (SHIPPING)
WEIGHT:	0.25 LBS
